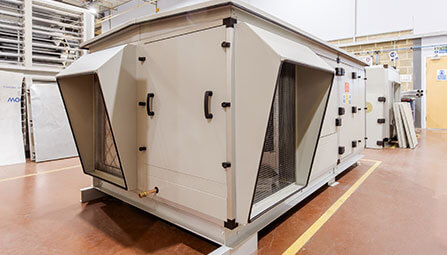

MVHR Mechanically ventilated heat recovery
Heat recovery ventilation is an energy recovery system that provides your building with ventilated air while simultaneously recovering the extract energy which reduces central plant size and electrical load. They are an excellent way to keep your site airy and well-ventilated while maintaining energy efficiency. They are highly versatile, with multiple access points making it every easy for our engineers to install them wherever you’d like and still reach them for repair and maintenance.
Get in touch for your AHU
Discuss your site’s air handling needs with our professional design engineers. You can reach us by phone on 01634 729 690 or you can email us on sales@eceuk.com. If you already have a strong idea of what you need for your project, feel free to fill out our online enquiry form.

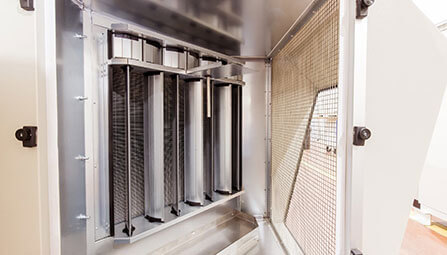

Heat recovery efficiency
This is a counter-flow heat exchanger which can offer up to 95% efficiency for your site. You can remove the need for a top-up heater which will ensure you can reduce both capital and running costs. The effectiveness and efficiency of MVHR units makes them well suited to healthcare, industrial, retail, distribution, storage, pharmaceutical, and data processing sites.
MVHR features
Low height
With a starting height of 365mm, this unit is highly ideal for modern buildings with little void depth inside ceilings. It can be installed discretely at your site and can even be fitted with acoustic lining to reduce noise, making them a convenient choice.

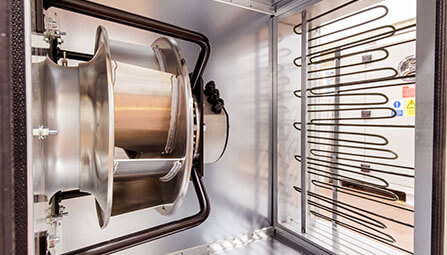

EC fans
Highly efficient EC Fans offering great energy saving solutions. Low specific fan power helps to achieve Part L2 building compliance. 0-10VDC input allows smooth speed control from BMS or demand ventilation inputs. Reduced maintenance and easy to change.

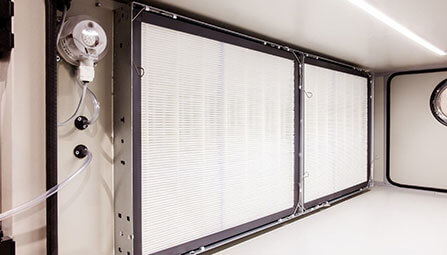

Filtration
All units come complete with F7 supply and M5 return panel filters. Filtration is an essential part of any air handling system as it ensures that the air entering your site is free of any pollutants that might negatively impact health and wellbeing.
Location
These units can be installed in a huge variety of locations at your site. If there isn’t sufficient space in your ceiling void, then they can be installed externally on the roof. This saves space inside the building and reduces noise.
Intelligent energy controls
Our intelligent energy controls can be installed with your air handling unit as standard. The ECE-Tech controller is fully expandable to suit your project requirements, up to 2060 Digital I/O and 511 Analogue I/O ports. Our latest model, the ECE-Tech 6 has been specially designed to run heat recovery units to a high efficiency with the maximum feedback to allow small and accurate adjustments. The controller facilitates the use of BACnet and Modbus. You have the choice to have the controller fully fitted, supplied separately, or remotely mounted.
Net zero carbon
Do your part to meet the net zero carbon initiative. The day-to-day running of buildings account for a significant portion of global emissions, but by recovering heat from your ventilation system you can mitigate this impact. Our MVHR systems are custom-designed to deliver the air your site requires with the greatest energy efficiency possible.

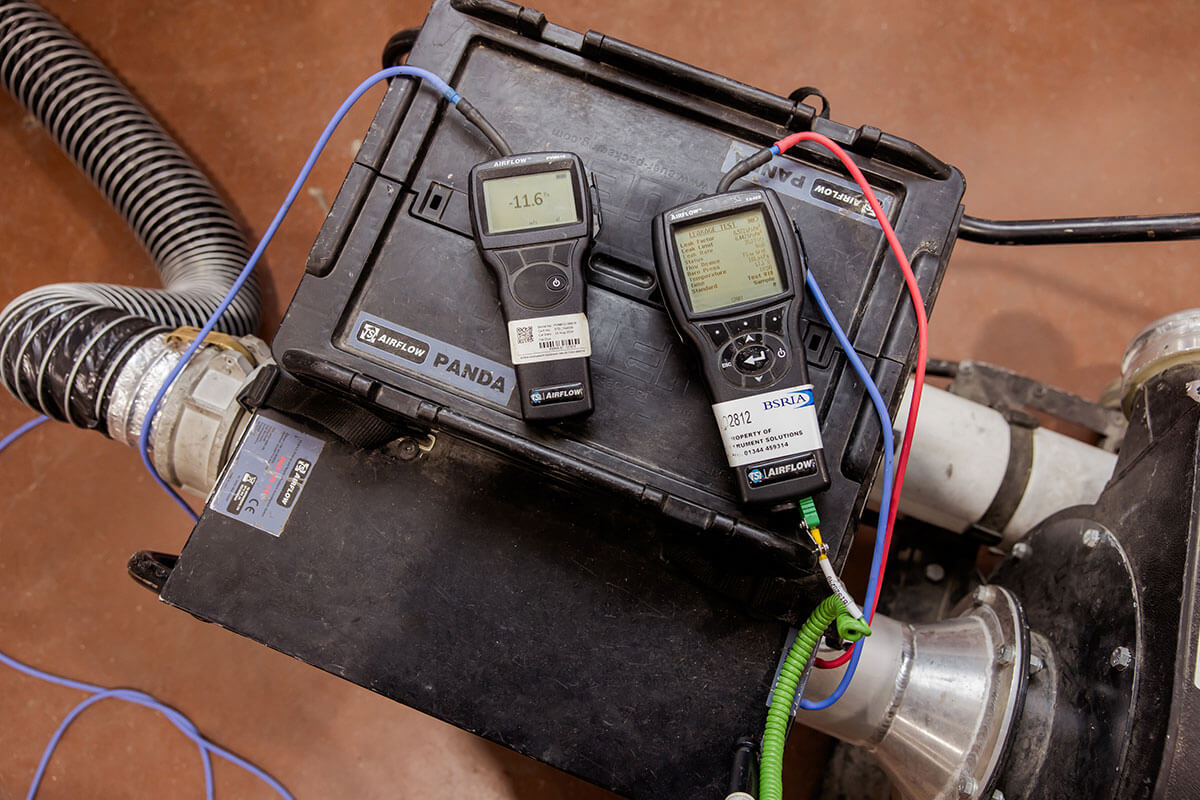

Factory acceptance test
After the manufacturing process, our engineers will complete a Factory Acceptance Test. This will verify that your MVHR equipment will work as designed, has been assembled according to specifications, and is ready to use. All the results and reports will be made easily available to you through our secure client portal:
- Completed FAT protocol
- Installation, Operation, and Maintenance (IOM) manual
- Recommended spare parts lists
- Certificates of compliance
- As-built certified drawings
- Air tightness certificate
- Filter DOP certificate
